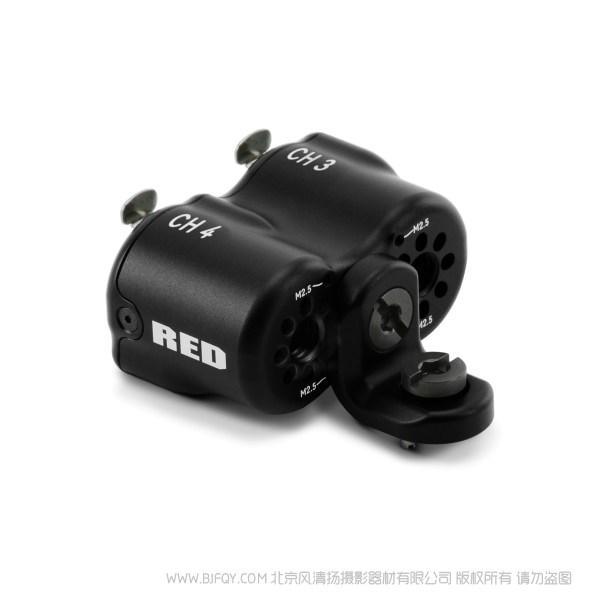

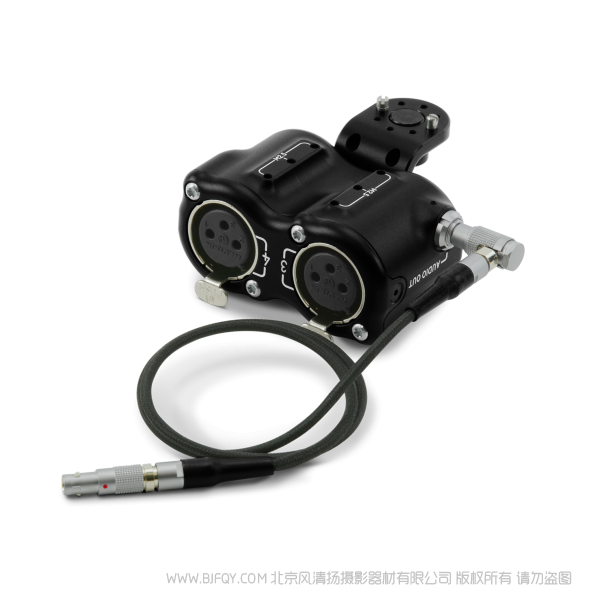

DSMC3 RED 5-PIN TO DUAL XLR ADAPTER 5針轉XLR適配器
￥ 2599.00元
相關推薦
7999.00
RED V-RAPTOR 迅猛龍肩托 快裝板平臺 QUICK RELEASE PLATFORM PACK SKU 790-0692
359999.00
RED V-RAPTOR XL [X] 霸王龍X SKU 710-0394 電影機 全域快門 3540萬像素 8K120P 4K240P
2699.00
RED PRO CFEXPRESS 1TB 存儲卡 CEB原裝卡 SKU 750-0102
7999.00
RED PRO CFEXPRESS 2TB CEB 存儲卡 閃存 原廠 原裝卡 SKU 750-0100
23500.00
RED DSMC3 RED TOUCH 7.0" 7英寸監視器 SKU 730-0029 1300nits 322ppi
The DSMC3? RED? 5-Pin to Dual XLR Adapter is a compact solution to break out the 5-Pin ODU port to Dual 3-Pin XLR ports. The Adapter can provide 48V phantom power with mic and line input and is easily mounted to your V-RAPTOR? via ?-16 screw.
For issues troubleshooting, contact support@cs.inc.
COMPATIBILITY: The DSMC3 RED 5-Pin to Dual XLR Adapter is not compatible with DSMC?, DSMC2?, RED RANGER? or KOMODO? camera systems.
DSMC3?RED?5引腳轉雙XLR適配器是一種緊湊型解決方案，可將5引腳ODU端口轉換為雙3引腳XLR端口。適配器可以提供帶麥克風和線路輸入的48V幻象電源，并可通過8 / -16螺釘輕松安裝到V-RAPTOR?上。
兼容性:DSMC3 RED 5針轉雙XLR適配器與DSMC?，DSMC2?，RED RANGER?或KOMODO?相機系統不兼容。
DIMENSIONS ADAPTER 物理尺寸 | Height: 1.31 in (33.15 mm)? Width: 2.54 in (64.50 mm)? Depth: 1.70 in (43.16 mm)? |
|---|---|
| DIMENSIONS RIGHT ANGLE BRACKET | Height: 1.10 in (28.00 mm)? Width: .87 in (22.00 mm)? Depth: 1.10 in (28.00 mm)? |
| WEIGHT? ADAPTER W/ BRACKET | Approximately 0.50 lbs (224.81 g)???? |
| MATERIAL?? | Aluminum and Rubber???? |
| CONNECTION TO V-RAPTOR?? | Via 5-Pin Audio Port |
| CONNECTORS | 2x 3-Pin XLR (Female) |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
Tech specs reflect both current and projected information. Everything is subject to change.
