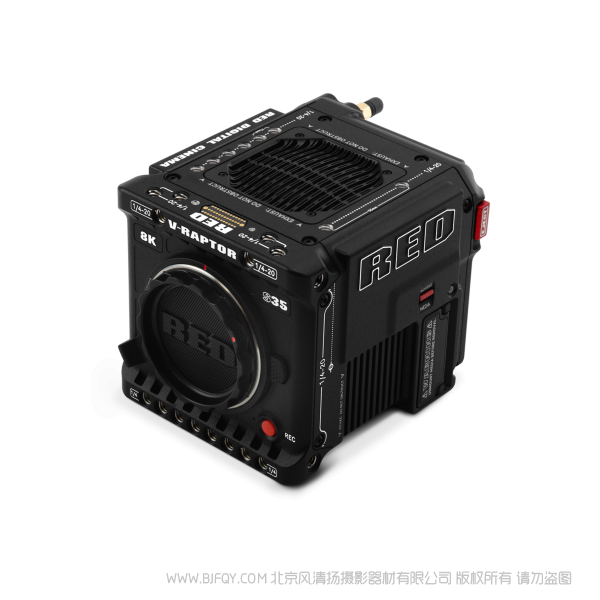

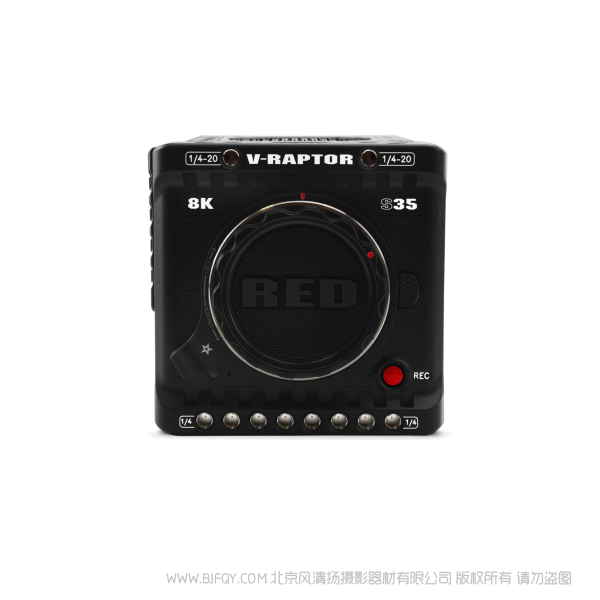

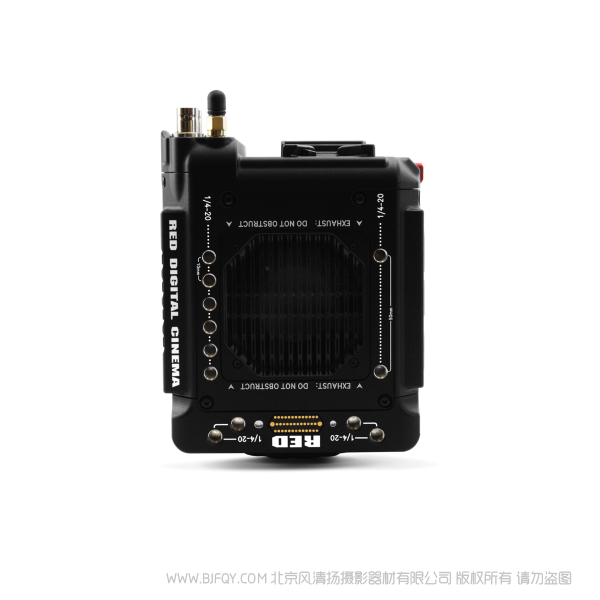

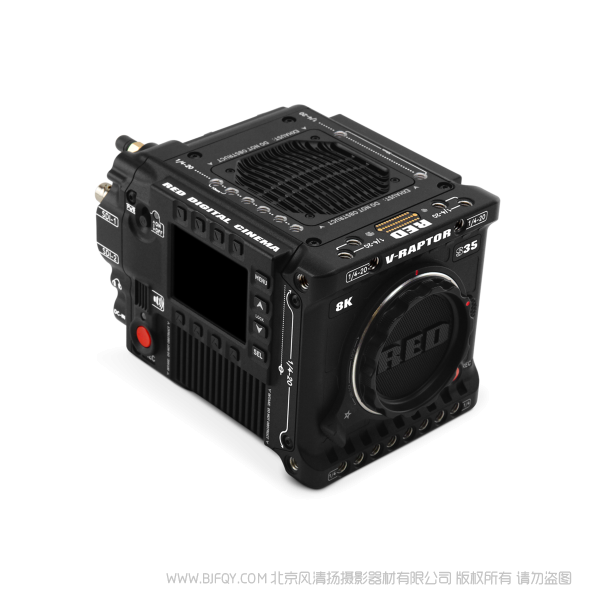

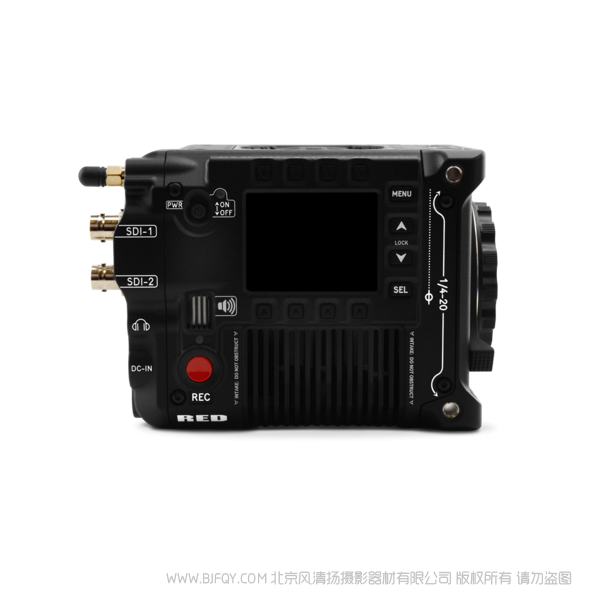

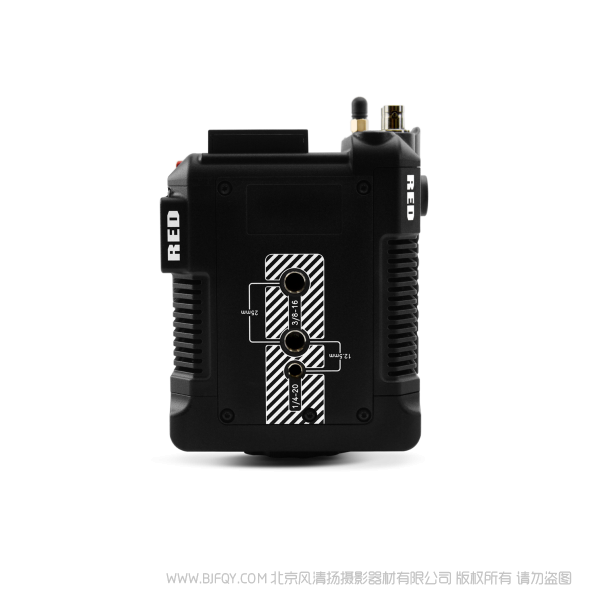

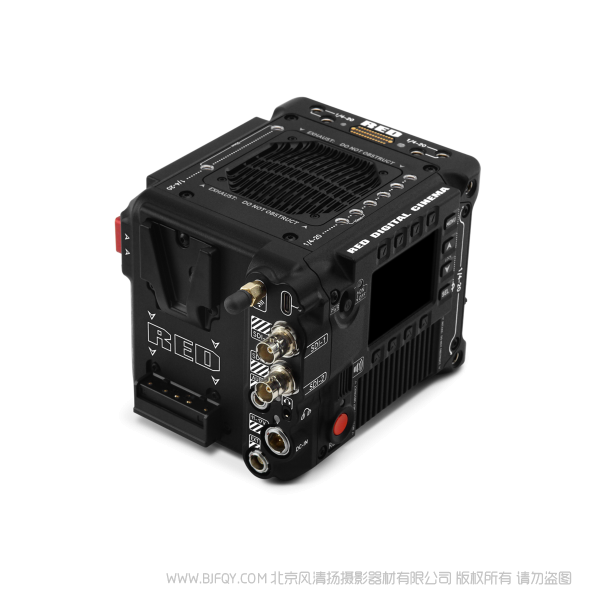

RED V-RAPTOR 8K S35 迅猛龍 S35版電影機

￥ 195000.00元

V-RAPTOR™8K S35還將繼續采用RED專有的REDCODE®RAW編解碼器，允許用戶捕獲16位RAW，并利用RED較新的IPP2工作流程和色彩管理。

咨詢

“缺貨” 標題含有缺貨字樣會不定期進行補貨，具體根據廠商和供應商的到貨時間，詳情可咨詢客服

“停產” 標題含有停產字樣此商品僅供展示

“預售” 標題含有預售字樣表示預約意向如若需求可咨詢客服

相關推薦

7999.00

RED V-RAPTOR 迅猛龍肩托快裝板平臺 QUICK RELEASE PLATFORM PACK SKU 790-0692

359999.00

RED V-RAPTOR XL [X] 霸王龍X SKU 710-0394 電影機 全域快門 3540萬像素 8K120P 4K240P

2699.00

RED PRO CFEXPRESS 1TB 存儲卡 CEB原裝卡 SKU 750-0102

7999.00

RED PRO CFEXPRESS 2TB CEB 存儲卡閃存原廠原裝卡 SKU 750-0100

23500.00

RED DSMC3 RED TOUCH 7.0" 7英寸監視器 SKU 730-0029 1300nits 322ppi

V-RAPTOR?8K S35是RED?DSMC3?一代攝像機的另一個新成員?；谂cV-RAPTOR?8K VV相同的架構，V-RAPTOR 8K S35提供了一種新的拍攝格式，同時利用其更大的8K VV前身在色彩科學和性能方面的改進。

V-RAPTOR 8K S35具有針對Super35mm鏡頭優化的8K傳感器，為電影制作人提供了使用多功能Super35mm鏡頭的獨特優勢，同時仍然可以捕捉8K分辨率提供的平滑逼真的細節。使用全8K Super35mm視場，以120幀/秒的速度創建令人驚嘆的慢動作圖像，或在2K時高達600幀/秒。V-RAPTOR 8K S35擁有超過16.5個動態范圍，可以在所有類型的環境中捕捉令人驚嘆的圖像。V-RAPTOR?8K S35還將繼續采用RED專有的REDCODE?RAW編解碼器，允許用戶捕獲16位RAW，并利用RED較新的IPP2工作流程和色彩管理。

8K S35傳感器位于與V-RAPTOR 8K VV相同的相機機身內，提供電影制作人所依賴的相同馬力和靈活性。V-RAPTOR的特點是一個現代化的平臺，在一個驚人的緊湊的包裝重量剛剛超過4磅。有兩個4K 12G-SDI輸出，XLR音頻和通過斷開適配器的幻象電源，以及1080p直播，這個系統可以處理射手可以拋給它的大多數事情。

此外，V-RAPTOR/V-RAPTOR?XL和DSMC3平臺具有先進的連接解決方案，可實現RED Connect等應用，用于8K R3D電影直播和遠程錄制，遠程控制和監控，相機內幀。io集成、AWS直接上傳等等。

V-RAPTOR 8K S35

SENSOR TYPE 產品名	V-RAPTOR? 8K S35 35.4 Megapixel CMOS
EFFECTIVE PIXELS 畫幅	8192 x 4320
SENSOR SIZE 傳感器尺寸	26.21 mm x 13.82 mm (Diagonal: 29.63 mm)
DYNAMIC RANGE 動態范圍	16.5+ stops
MOUNT TYPE 卡口	Integrated RF mount with RF lens support Supports Canon EF lenses via compatible Canon RF to EF mount adapters Accepts other Canon RF mount-based lens adaptors for diverse lens choices
MAX DATA RATES 數據傳輸速率	Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
REDCODE? RAW MAX FRAME RATES RED RAW幀碼率	120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
BEST AVAILABLE REDCODE? SETTINGS 格式設置	REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE? RAW ACQUISITION FORMATS 拍攝畫幅比	8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
APPLE PRORES 蘋果ProRes格式支持	Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096 x 2160) Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)
CONSTRUCTION 結構	Aluminum Alloy
WEIGHT 重量	4.00 lbs (without body cap and CFexpress card) 1.814kg （不含鏡頭蓋和卡）
MEDIA TYPE 存儲卡格式	CFexpress Type B （CEB）
BATTERY TYPE 電池	Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
DC POWER INPUT 外接供電	11-17V via 6-pin DC-IN
OPERATING TEMPERATURE 工作溫度	0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE 存儲溫度	–20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY 保存濕度	0% to 85% non-condensing
COLOR MANAGEMENT 色彩管理	Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import of CDLs
AUDIO 音頻參數	Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
AUTOFOCUS 自動對焦	Contrast and Phase Detect
REMOTE CONTROL 遠程控制	Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
MONITOR OUTPUTS 外監接口	Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS 監視器選項	DSMC3? RED? Touch 7.0” LCD Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing Integrated 2.4" LCD for camera control (no preview video)
RED CONTROL 其它接口	Access full camera controls and live preview from iOS or Android devices Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
