RED COMPACT EVF 電子取景器 SKU 730-0030
￥ 26999.00元
相關推薦
7999.00
RED V-RAPTOR 迅猛龍肩托 快裝板平臺 QUICK RELEASE PLATFORM PACK SKU 790-0692
359999.00
RED V-RAPTOR XL [X] 霸王龍X SKU 710-0394 電影機 全域快門 3540萬像素 8K120P 4K240P
2699.00
RED PRO CFEXPRESS 1TB 存儲卡 CEB原裝卡 SKU 750-0102
7999.00
RED PRO CFEXPRESS 2TB CEB 存儲卡 閃存 原廠 原裝卡 SKU 750-0100
249500.00
RED V-RAPTOR [X] 迅猛龍X 8K VV 3540萬像素 SKU 710-0390-02 電影機 全域快門傳感器
包裝內含
- 1x RED Compact EVF

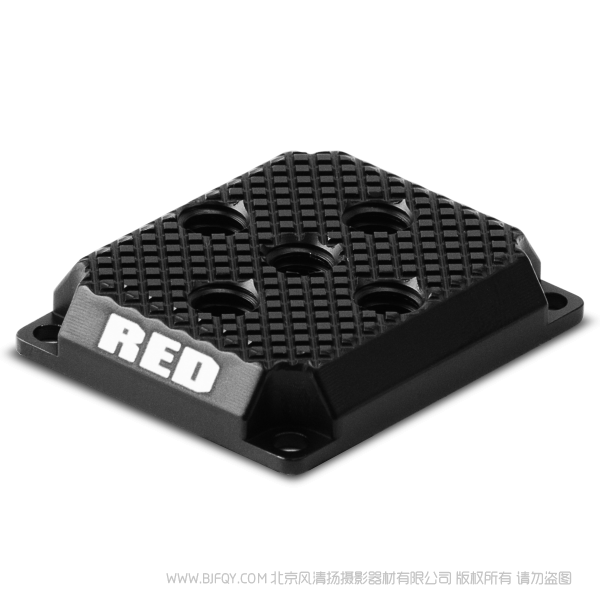

- 1x 1/4-20 Mount Plate

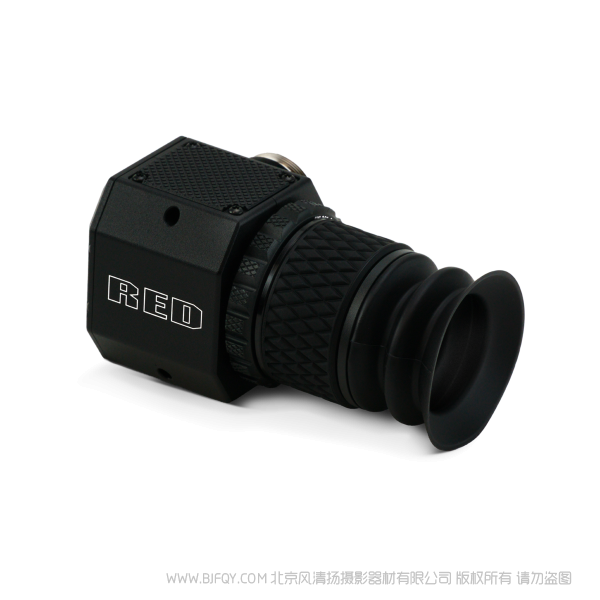

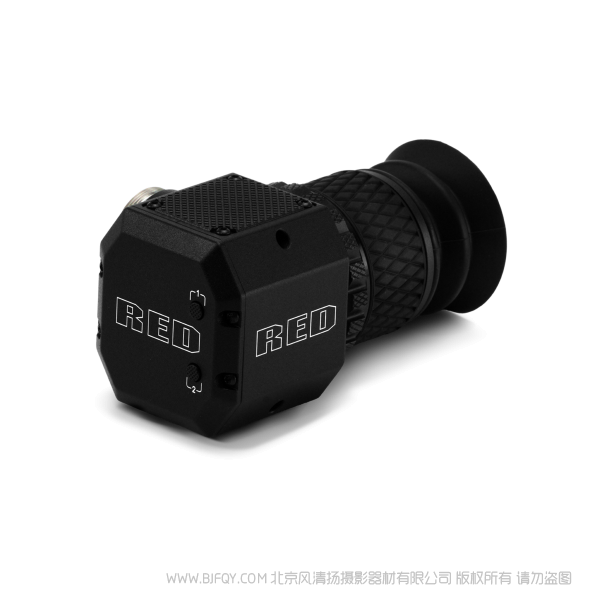

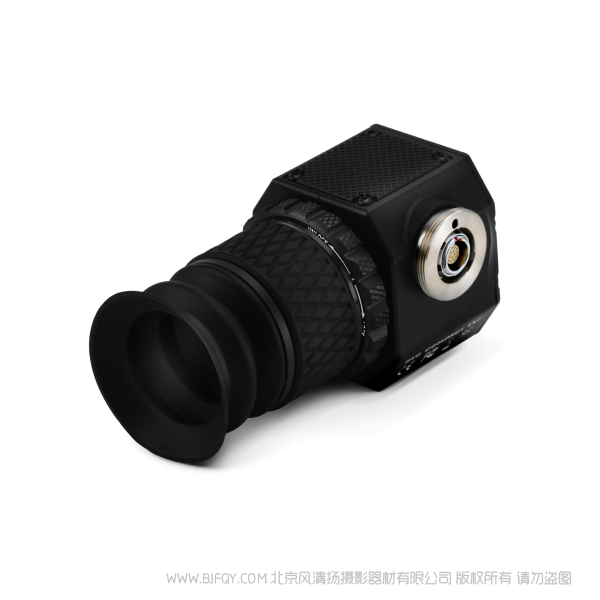

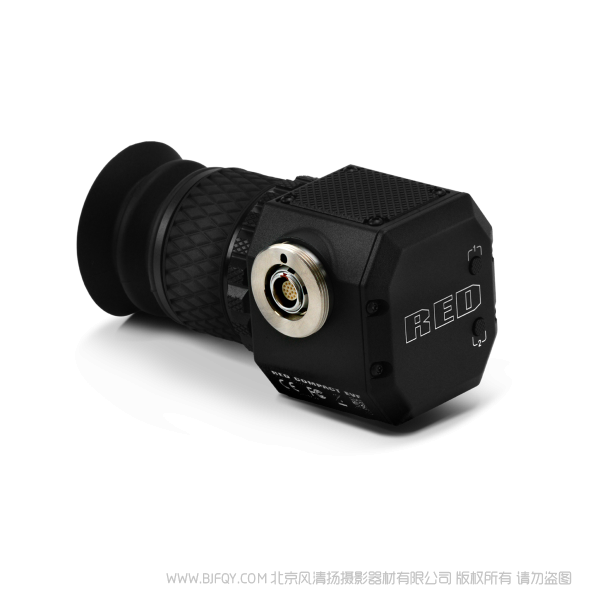

The RED? Compact EVF is a single cable monitoring solution for DSMC3? camera systems. It features a 1080p micro-OLED display and user-assignable buttons to quickly access tools such as peaking and magnify, or assignable to control the camera’s settings such as ISO, FPS and White Balance.
The RED Compact EVF includes an adjustable diopter, a quick-connect mount for use with the RED EVF Mount or a 1/4-20 mount plate for use with third-party options, and an updated secure eyecup mounting system that also allows the operator to easily replace the eyecup.
NOTES:
- Camera settings control is only supported on DSMC3 systems.
- The DSMC3 Adapter A is required to use the RED Compact EVF on DSMC3 cameras (sold separately).
WARNING: DO NOT point the RED Compact EVF eyepiece at direct sunlight. Continued exposure to direct sunlight can damage the EVF. When the operator is not using the EVF, they must keep the eyepiece pointed away from sunlight. Damage to the RED Compact EVF caused by continued exposure to direct sunlight is not covered under the warranty.
CAMERA COMPATIBILITY
| DSMC | DSMC2 | RANGER | KOMODO | KOMODO-X | V-RAPTOR | V-RAPTOR XL |
|---|---|---|---|---|---|---|
| - | ? | ? | - | COMING SOON | ?* | ?* |
*When used with the DSMC3 Adapter A.
RED COMPACT EVF
| DIMENSIONS | Height: 2.43 in. (61.7 mm) Width: 2.46 in. (62.5 mm) Depth: 4.8 in. (121.9 mm) |
|---|---|
| WEIGHT | 0.8 lbs (360 g) |
| MATERIAL | Aluminum |
| CAMERA MOUNTING | Via integrated attachment wheel and RED EVF Mount or 1/4-20 mount points on included Mount Plate. |
| RESOLUTION | 1920 (width) x 1080 (height) |
| BIT DEPTH (COLOR) | 8-bit |
| CONTRAST RATIO | > 10000:1 |
| DISPLAY RATE | 60 fps |
| OPTICS | Fully coated optics with > 32° field of view, infinity focus and eye cup that accommodates standard 1.6” to 1.8” diameter eye cushions |
| DIOPTER RANGE | – 2.5 to + 2.5 diopter correction range |
| BUTTONS | Two buttons for camera control or user defined buttons |
| POWER CONSUMPTION | 2.5 W (max) |
| OPERATING TEMPERATURE | 32°F to 104°F (0°C to 40°C) |
| STORAGE TEMPERATURE | –4°F to 122°F (–20°C to 50°C) |
| OPERATING HUMIDITY | 0% to 85%, non-condensing |
| STORAGE HUMIDITY | 0% to 85%, non-condensing |
Tech specs reflect both current and projected information. Everything is subject to change.
