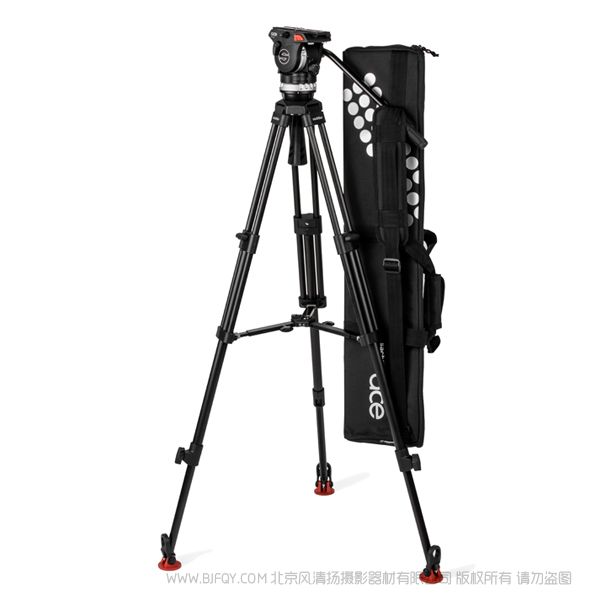

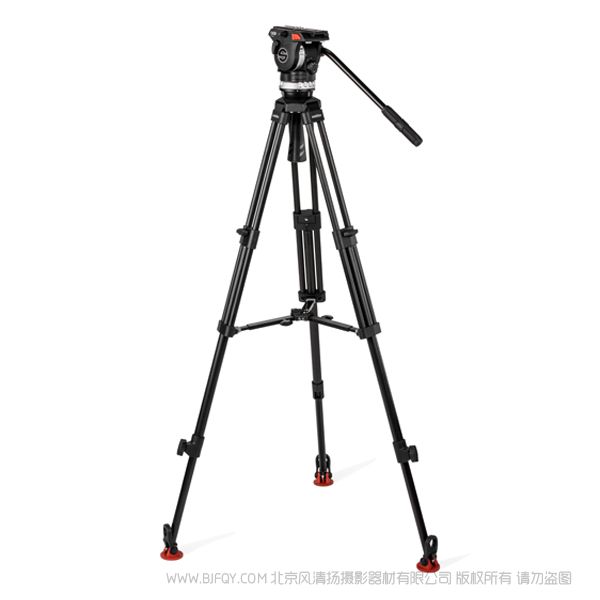

The Ace XL Tripod is exclusively available as a package with a 75 mm fluid head and a useful transport bag. Anybody who works on uneven ground and “on location” would have an advantage with the two-stage extension tripods featuring a mid-level spreader.

Professional performance means maximum stability and jerk-free camera movement, even when supporting heavier digital cine-style cameras and rigs. The Sachtler Ace XL Fluid Head supports up to 8 kg and the eight counterbalance steps mean that camera balancing is always quick and simple. The lightweight design means that it won’t weigh you down, while the high degree of stability means that it won’t let you down either.

A range of features make the Sachtler Ace XL Fluid Head a versatile part of your kit. The 75 mm ball-based head has an integrated flat bottom designed to accommodate a wide range of configured rigs. The integrated flat head base means that the Ace XL can be modified for shooting with a slider. Once you have set up, the three steps of pan and drag plus zero allow for effortless smooth movement. Durable, lightweight and designed with the user in mind, this fluid head will remain a part of your kit for years.

是Ace XL三腳架特供套裝，含75mm液壓云臺及功能性運輸軟包。在不平坦地面和外景拍攝地工作的人員均可使用含中置延伸器的兩級三腳架。 工作快速高效，輕松實現完美拍攝效果。一旦攝像機設定好動平衡， Sachtler的阻尼技術將持續穩定地給您帶來精細而平滑的操控。3檔的水平和垂直阻尼也可助您快速而直觀地操作，同時始終確保裝備的可靠性。75毫米云臺滑板的滑動范圍達120毫米，提升工作靈活性，獲得較佳拍攝效果。

產品線

Ace

手柄數量

1

較大承重

2 to 8 kg

球碗口徑

75 mm

延伸器類型

Mid-level spreader

材料

Carbon Fibre

收納長度

860 mm

三腳架級數

2

高度范圍 - 含延伸器

0.79 to 1.70 m

重量

3.90 kg

溫度范圍

-30 to 60 °C

俯仰范圍

90° to -75°

托板滑動范圍

104 mm

接口兼容性

Slide-in

動平衡

8 個動平衡檔位

阻尼

3 種水平和垂直阻尼設置 + 0

Range

Ace

Pan bar count

1

Payload

2 to 8 kg

Bowl size

75 mm

Weight

4.50 kg

Spreader type

Mid-level spreader

Material

Aluminium

Transport length

860 mm

Tripod stages

2

Height with spreader

0.79 to 1.70 m

Temperature range

-30 to 60 °C

Tilt range

90° to -75°

Sliding range

104 mm

Interface Compatibility

Slide-in

Counterbalance

8 counterbalance steps

Drag

3 + 0 horizontal and vertical grades of drag
